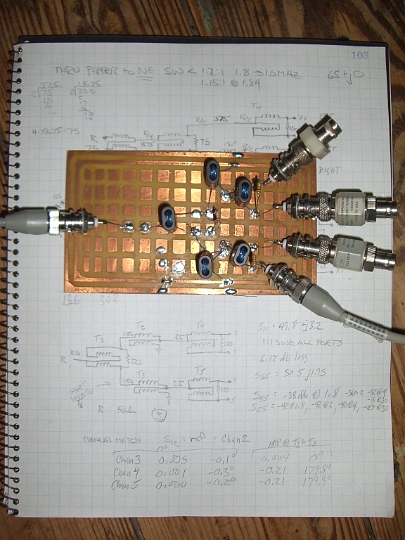

| Commercial 4 port combiners are expensive. They usually cover 100s to 1000s of MHz. Here is my first attempt with no optimization. Each transformer has 4 turns. 1:1.0 SWR all ports. Loss < 0.125db over ideal (6db). Port to port isolation > 30db. Balance, 0.005db and 0.3 degrees. Excellent! | |
