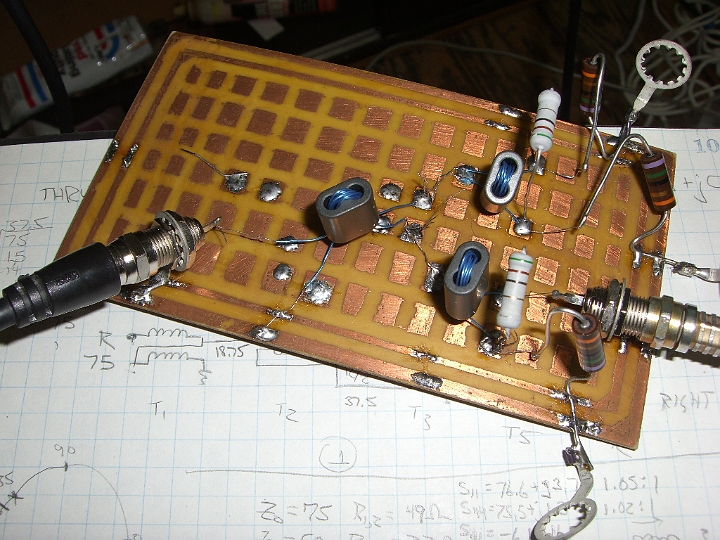

| Here I've changed the 50 ohm Zo design to 75 ohms. The results are the same as the 50 ohm vers. For Zo = 50 ohms the balance resistors are 33 ohms. For Zo = 75 ohms the balance resistors are 51 ohms. | |
