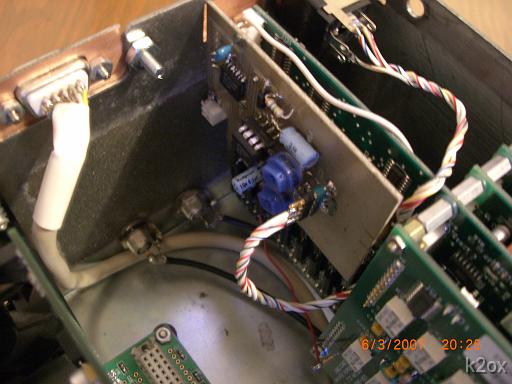

Here is the power meter board. The OXDR drives a legal limit solid state amplifier and the power meter board monitors the amplifiers forward and reflected power. The results are shown on the PowerSDR console.
